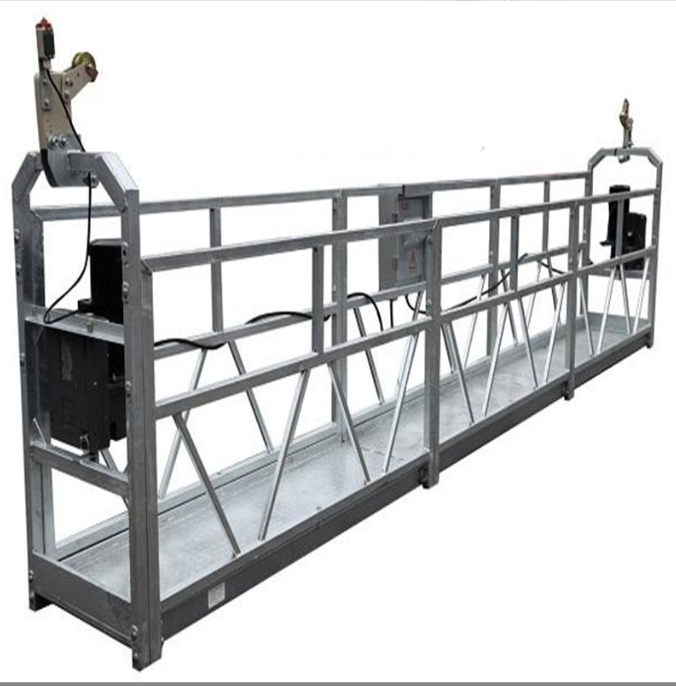

Hot Galvanized Suspended Platform
Product Detail
| Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Material | Steel power Painting | Hot Galvanized | Aluminum Alloy | |||||
| Colour | Yellow | blue | Red | Green | Silver | Custom made | |||||
| Lifting Height | 100M | |||||
| Rated Load | 250kg | 500KG | 630KG | 800KG | 1000KG | |
| Platform Size | 1.2M | 5M | 6M | 7.5M | 7.5M | |

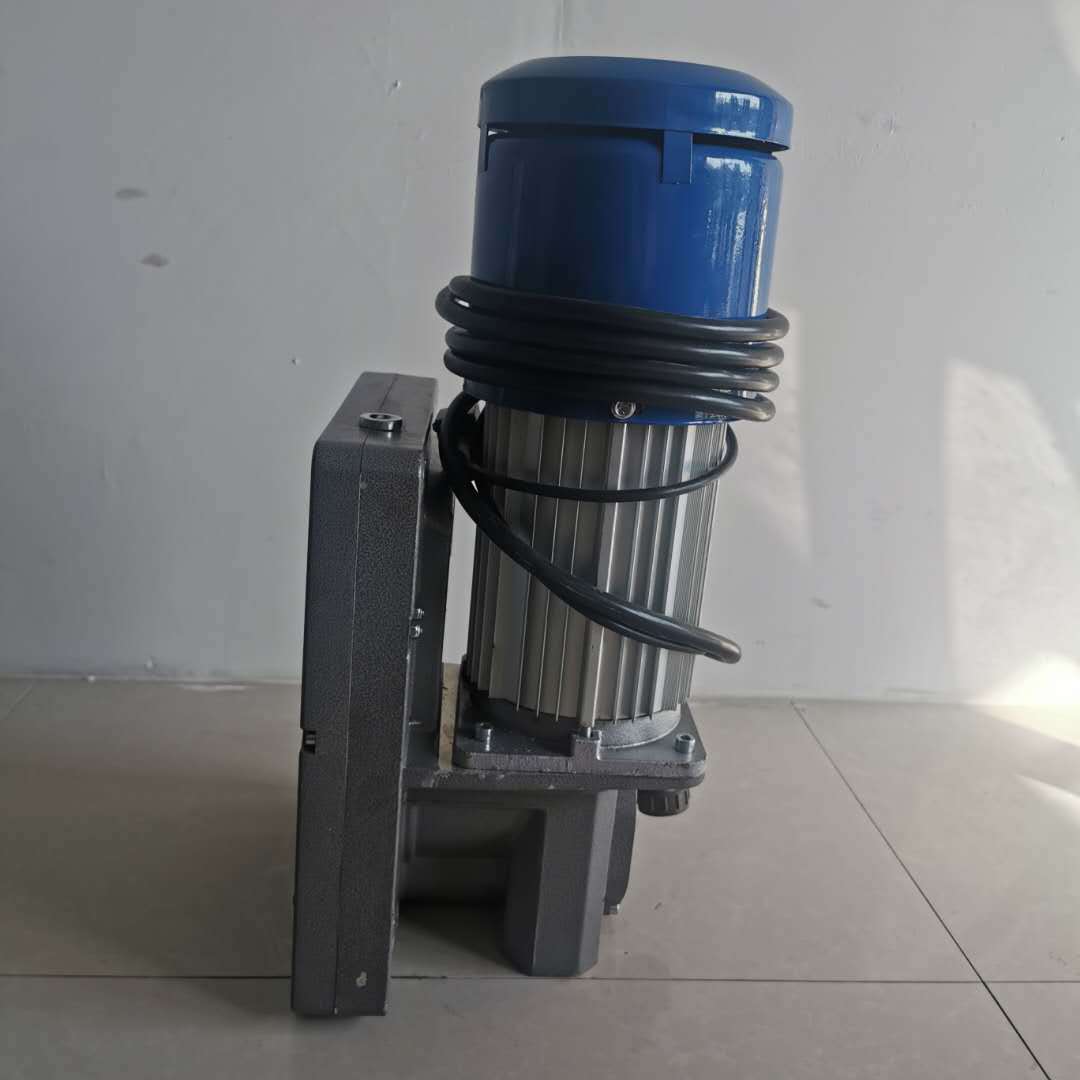

| Hoist | LTD630 α Type | LTD800 α type | LTD80 S type | |||
| Power | 1.5KW*1 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 | ||
| Voltage | 380V | 220V |415V | |||||
| Frequency | 50HZ | 60HZ | |||||
| Phase | 3Phase | Single Phase | |||||

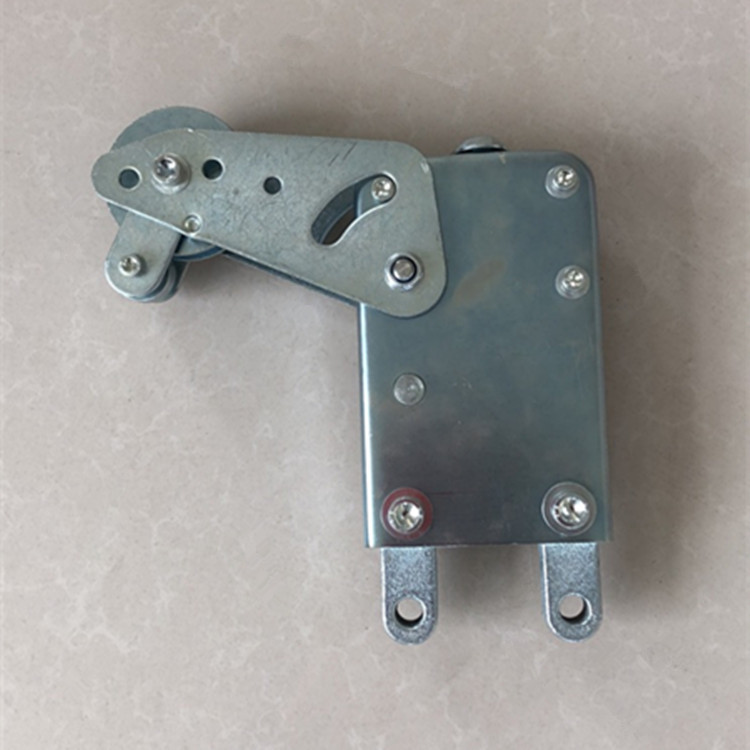

| Safety Lock | Anti tiling LSB30 | |||||
| Cable | 100m | |||||

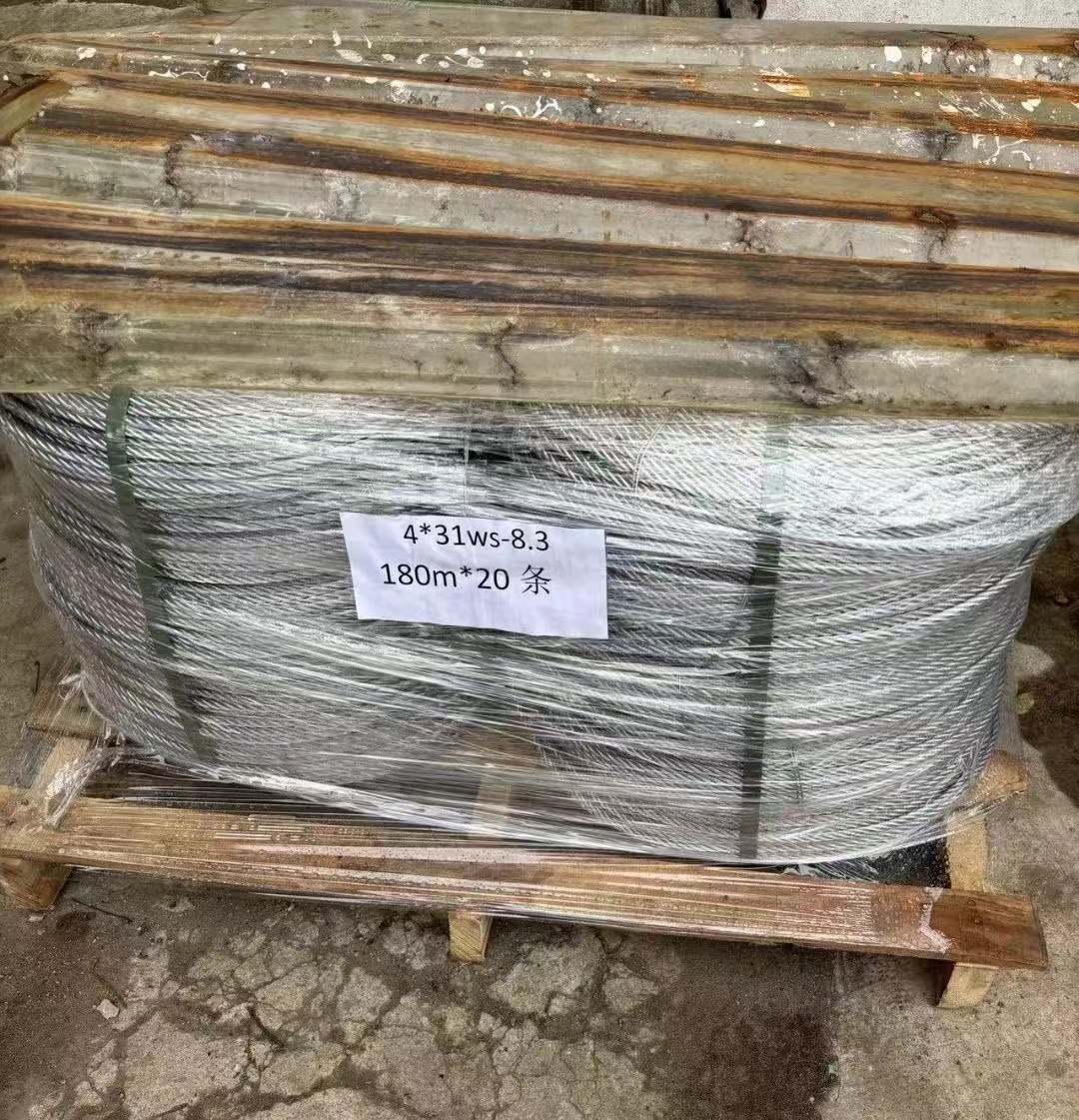

| Wire rope | 8.3MM | 8.3/9.1MM | 8.6MM | |||

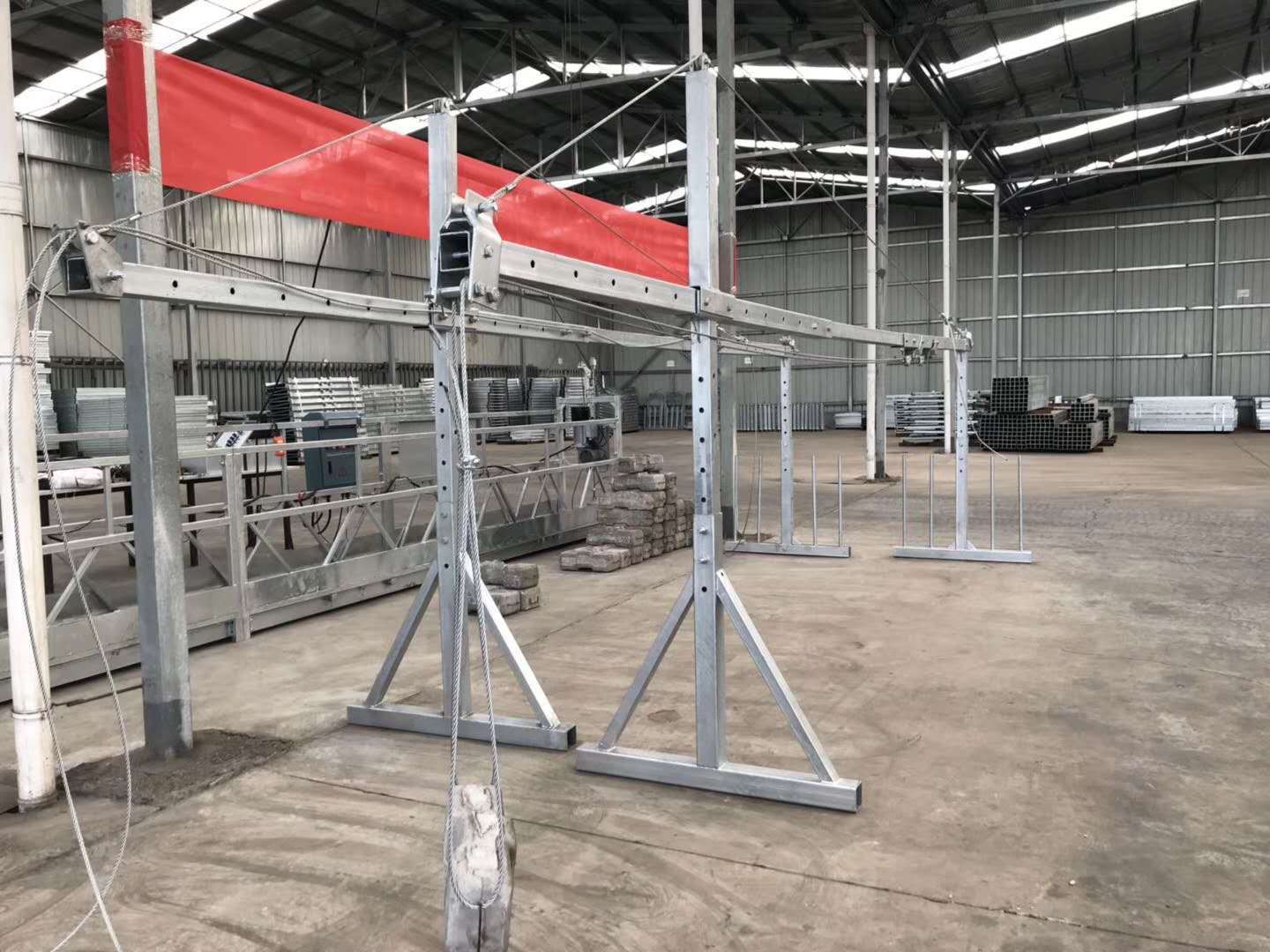

| Suspension mechanism | Standard Type: Front beam overhang-1.3~1.5m,Support adjustable height-1.44~2.14m Optional Type :Parapet | |||||
| Counterweight | 1000KG Standard Cement (Optional: Iron casting | Steel cover) | |||||
