CS Series Cone Crusher

Product Detail

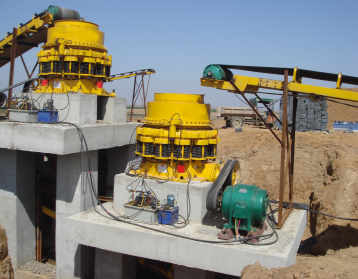

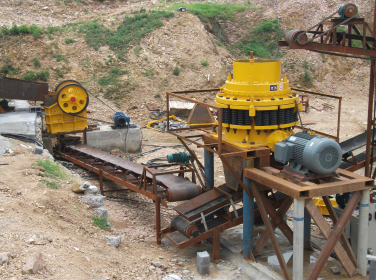

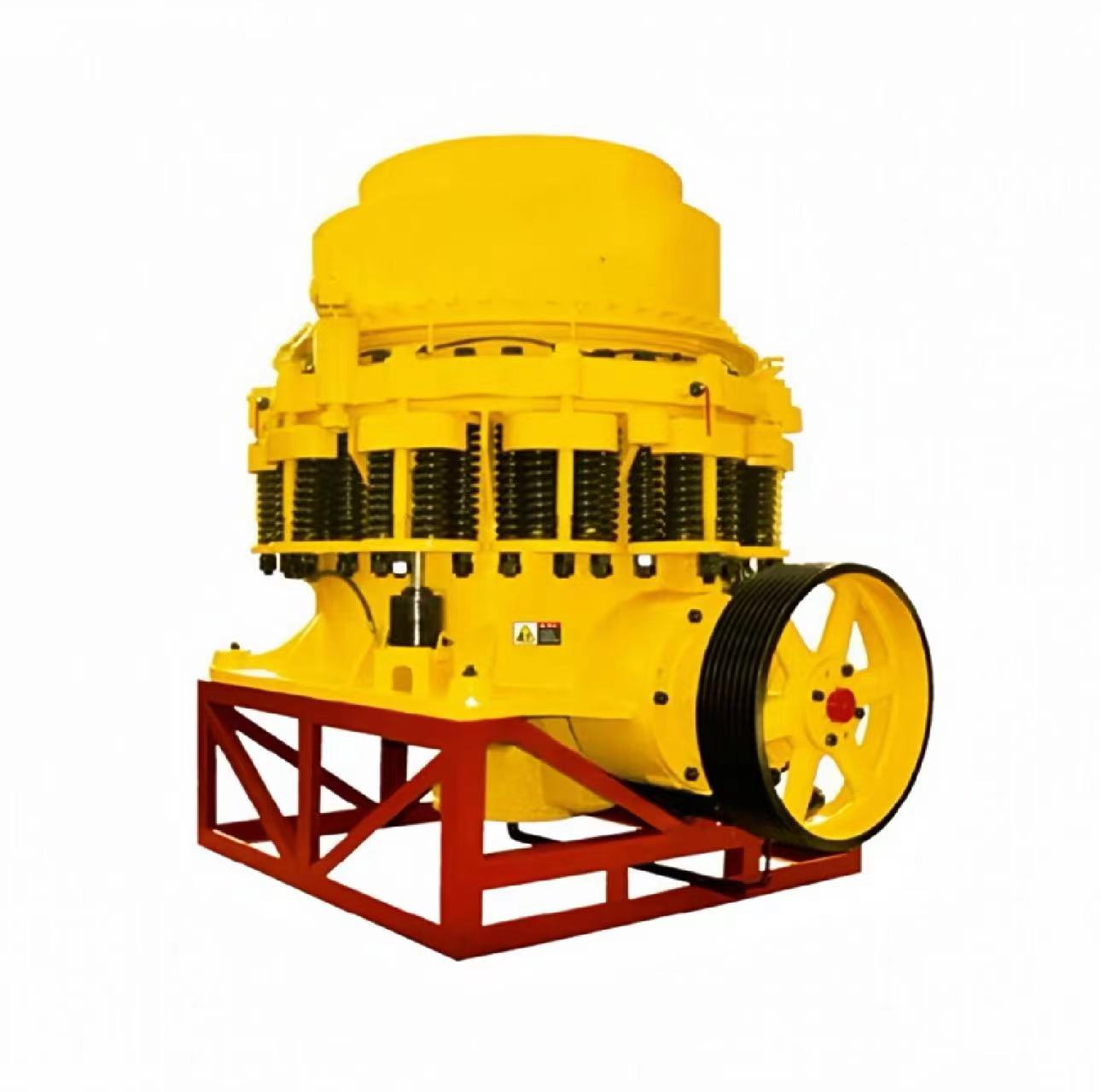

    CS Series Cone Crusher

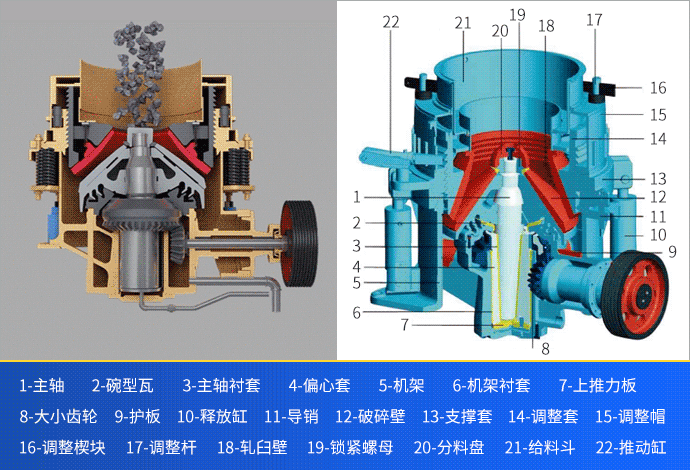

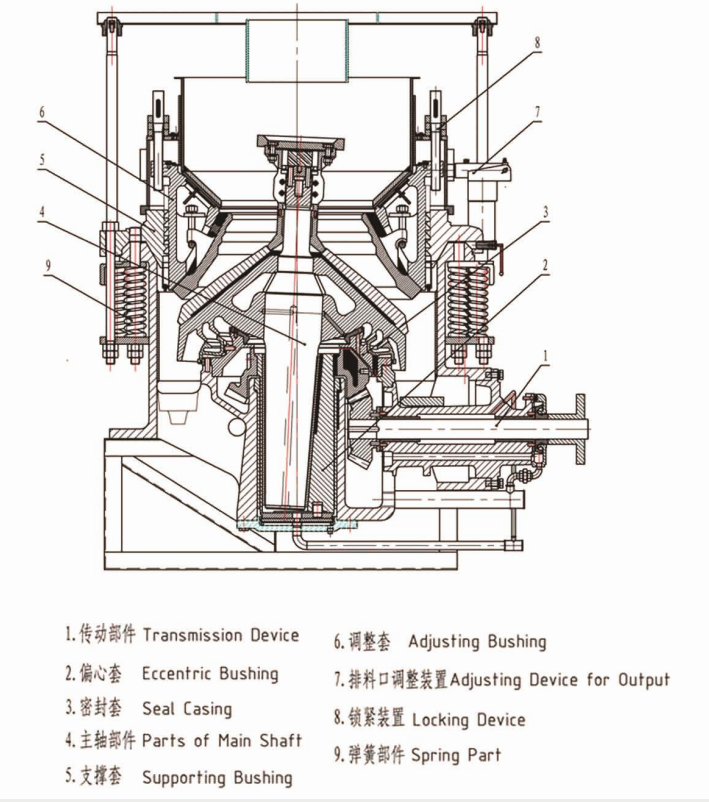

    CS cone crusher work, by the motor through the triangle belt, large belt wheel, drive shaft, small bevel gear, large bevel gear drive eccentric sleeve rotation, the broken cone axis line in the eccentric shaft sleeve forced to do rotation swing, so that the surface of the broken wall sometimes close to and sometimes leave the surface of the rolling mortar wall, So that the material is constantly affected, squeezed and bent in the ring crushing chamber composed of fixed cone and moving cone. After several extrusion, impact and bending, the material is broken to the required particle size and discharged through the lower part.

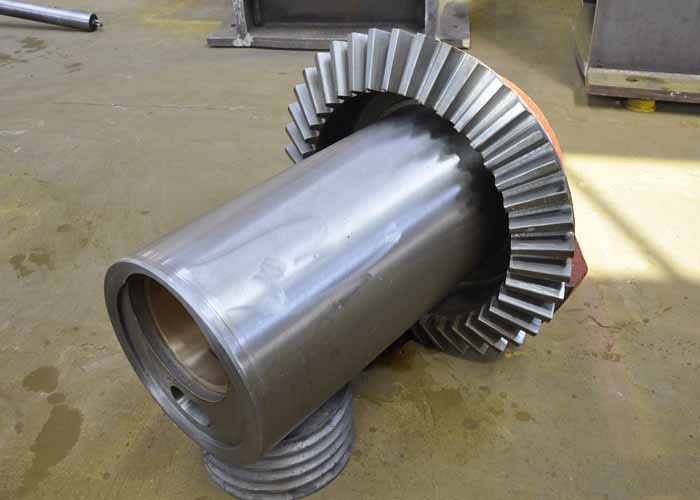

    Material selection: The big gear is made of 40Cr arc steel furnace and the small gear is forged with 35SiMn.

    Heat treatment: core tempering + surface quenching processing using imported bevel gear planer, so that the gear can ensure its accuracy from tooth shape and indexing.

    Eccentric shaft sleeve as the core parts of the cone crusher, its accuracy determines the accuracy of the whole machine moving parts, our factory uses each specification (model) of the eccentric shaft sleeve have their own special processing machine, eccentricity accuracy exceeds the requirements of the drawing.

    A variety of cavity types to choose from


    Specification Parameter

    CS Seies Standard Type Main Technical Parameters
    Model

    Dia. of

    Cone

    (mm)
    Cavity                    Feed Opening Size   (mm)

    Output Size

    (mm)

    Capacity(t/h)

    Main Shaft Rotation                 Speed

      (r/min)

    Power    (kw)Weight(t)Overall Dimension    (L*W*H)(mm)
    Closing Size
    Opening Size
    B95900Fine
    831029-2245-9158095152821*1880*2164
    Coarse
    15917513-3859-163
    B1801295Fine
    10913713-31109-181485485272800*2342*2668
    Medium
    18821016-38132-253
    Coarse
    21524119-51172-349
    B2401676Fine
    18821016-38181-327485240553911*2870*3771
    Medium
    21324122-51258-417
    Coarse
    24126825-64299-635
    CS Short Head Type Main Technical  Parameters
    Model

    Dia. Of Cone

    Crusher      (mm)

    Cavity
    Feed Opening Size           (mm)Output size (mm)Capacity(t/h)Main Shaft Rotation Speed  (r/min)Power (kw)Weight(t)Overall Dimension (L*W*H)(mm)
    Closing Size
    Opening  Size
    D95900Fine
    13413-1327-9058095152821*1880*2164
    Coarse
    33603-1627-100
    D1801295Fine
    29643-1636-163485485272800*2342*2668
    Medium
    54896-1682-163
    Coarse
    7010510-25109-227
    D2401676Fine
    35705-1390-209485240553911*2870*3771
    Medium54896-19139-281
    Coarse
    9813310-25190-336
