PF Series lmpact Crusher

Product Detail

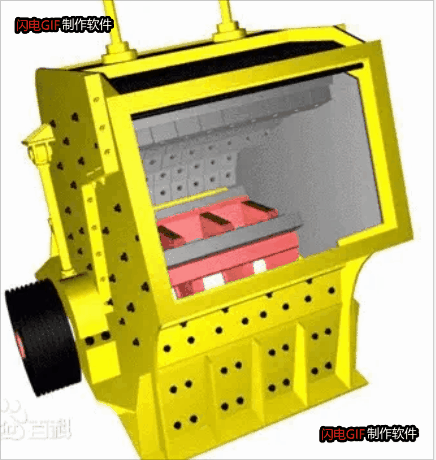

     PF Series lmpact Crusher

    PF series impact crusher usually isused as secondary crushing equipment,mainly used in intermediate crushingand coarse crushing work for all kindsof mining, rock: such as basalt, granite,cobble stone etc materials which underthe compressive strength 320Mpa.ThePF series impact crusher is widely used intransportation, mining, building material,chemical industry, metallurgy industry.ceramic industry, water and electricityengineering, basic construction and otherfield which is of high standard require-ment for aggregate grain form.

    Working Principle

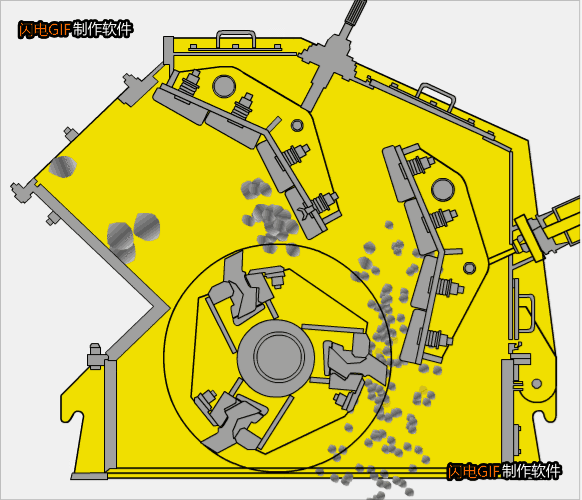

    The PF series impact crusher uses impact energy to crush materials. During operation, under the drive of the electric motor, the rotor of the impact crusher rotates at high speed. After the material enters, it collides with the plate hammer on the rotor to break, and then is struck back onto the lining plate for further crushing. Finally, it is discharged from the discharge port. Users can adjust the gap between the counterattack frame and the rotor frame to achieve the goal of changing the material discharge particle size and shape.



    Technical Parameter

    Model

    Rotor Specification (mm)

    Feeding Opening Size

    (mm)

     Max.Feed Size  (mm)

    Capacity  (t/h)

    Power  (kw)

    Overall Dimension

    (L*W*H)(mm)

    PF1010

    Φ1000×1050

    590×1040

    ≤150

    50-90

    75-90

    2703×2033×2136

    PF1214

    Φ1250×1400

    755×1440

    ≤190

    70-180

    132-160

    3545×2352×2640

    PF1315

    Φ1320×1500

    855×1600

    ≤210

    90-250

    180-200

    3591×3068×2965

    PF1320

    Φ1320×2000

    900×2000

    ≤210

    200-280

    250-280

    3591×3068×2975

    PF1520

    Φ1500×2000

    1500×2080

    ≤600

    350-400

    500-560

    3791×3068×3270
